Thông tin chi tiết sản phẩm:
|
| Thương hiệu: | Vương miện thêm | Người mẫu: | Gyj |
|---|---|---|---|
| Kiểu: | Cảnh báo đèn LED chống nổ báo động âm thanh và hình ảnh / BBJ | Điện áp: | 220VAC 50Hz, 24 VDC |
| Decibel: | 120-180db | Tần số nhấp nháy: | 150 lần/phút |
| Màu sắc: | Màu đỏ, vàng, xanh, xanh lá cây | Được chứng nhận: | CNEX, EX, IP66, IEC, IECEX |
| Gắn kết: | Trần nhà | ||
| Làm nổi bật: | waterproof explosion proof LED alarm light,180DB explosion proof visual alarm,5-40W explosion proof audible alarm |
||

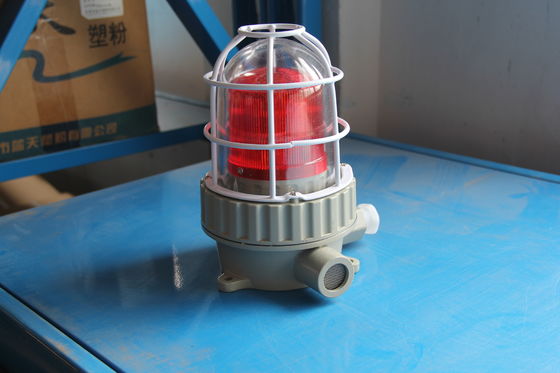

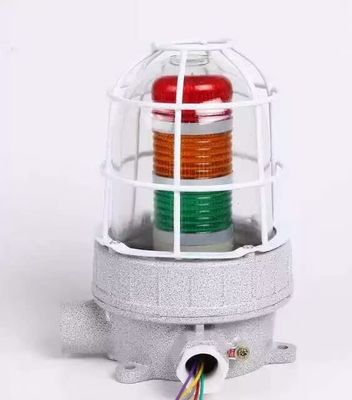

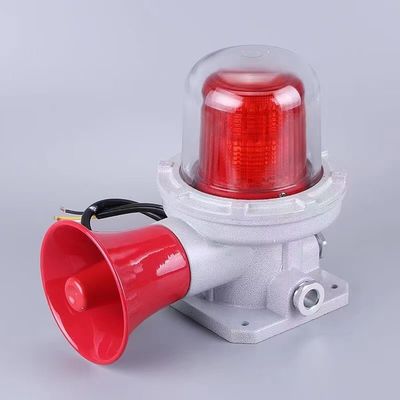

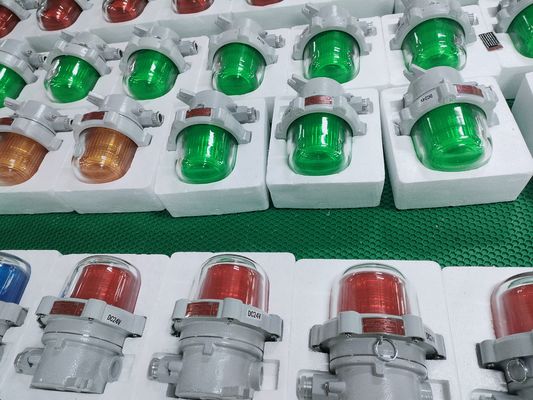

Waterproof Explosion-Proof Led Light Alarm Audible And Visual Alarm 5-40W 180DB with 150 times/min
BBJ Series
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
|
Areas with high energy costs
|
| Housing: | Die-casting aluminum/Stainless steel |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Ex Marking |
II 2GD Ex d e IIC T6 Gb/DIP A21 TA, T6
|
| Classification |
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
|
| Input Voltage |
AC220-230V/DC24V/ DC36V
|
| IP Degree | IP65 |
|
Corrosion Resistant
|
WF1 |
|
Power
|
5-10W; 5W; 40W; 5W
|
|
Sound Strength
|
90; 120; 180; 120
|
|
Flash Frequency
|
150Times/min |
| Color |
Red, Yellow, Blue, Green
|
|
Emergency start time
|
<0.3s
|
|
Conduit Entries |
G 3/4"
|
|
Mounting Styles
|
Base; Stanchion
|
|
Net Weight
|
1.8kg; 2.7kg; 3.7kg; 2.5kg
|
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
