Thông tin chi tiết sản phẩm:
|
| Thương hiệu: | Vương miện thêm | Tên sản phẩm: | Đèn chống cháy nổ GYD780 |
|---|---|---|---|
| Vật liệu: | Nhôm ADC-12 | Cri: | RA: ≥80 |
| Hiệu quả: | 140lm/w | Được chứng nhận: | CNEX, EX, IP66, IEC, IECEX |
| Gắn kết: | Ứng. Trần nhà, Trần nhà, Đèn đường phố, Bức tường | CCT: | 3000/4000/5000/5700K |
| Điện áp: | AC 100-277V, 50Hz/60Hz: 24/36VDC |

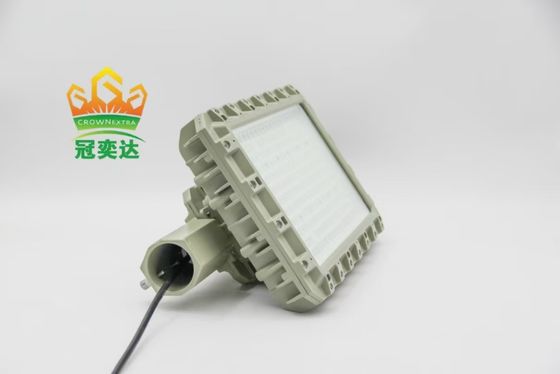

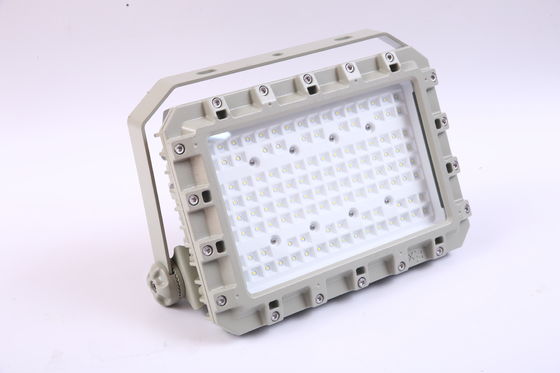

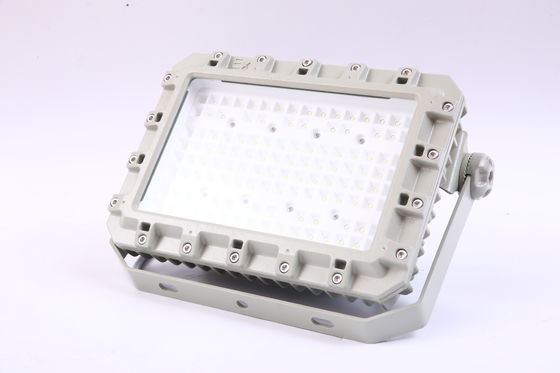

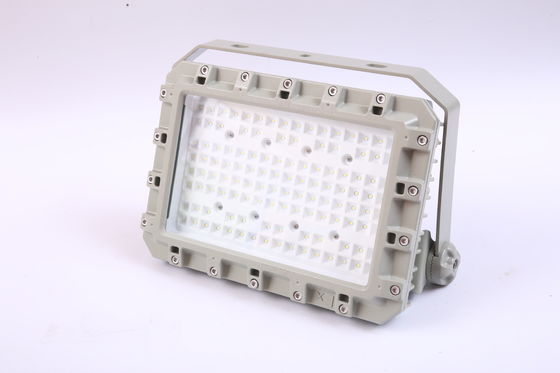

Factory Supply high voltage Explosion proof LED floodlights IP66 Waterproof Outdoor ATEX Certified
GYD780 Series
Features:
Zone 2, Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications
Isolated LED compartment reducestemperature within driver housing
Multi choice of beamangle for 60° 90° 120°
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: | Die-casting aluminum |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Rated voltage | 100-277VAC, 50-60Hz |
| Power factor | >0.95 |
| THD | <20% |
| Power consumption [W] | 50-100w,120-150w |
| Colour rendering [CRI] | 70 (±2) |
| Colour temperature [K] | 6000-6500 |
| Luminaire efficiency[Lm/W] | 125-130 |
| Beam angle | 120° (45°, 90° is optional) |
| Degree of protection | IP66 |
| Cable entry | G 3/4” |
| Weight [kg] | 10.85,13 |
| Terminal | ≤2.5 mm² |
| Mounting Styles | Ceiling; Wall Bracket; Pendant |
GYD780 Series
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
